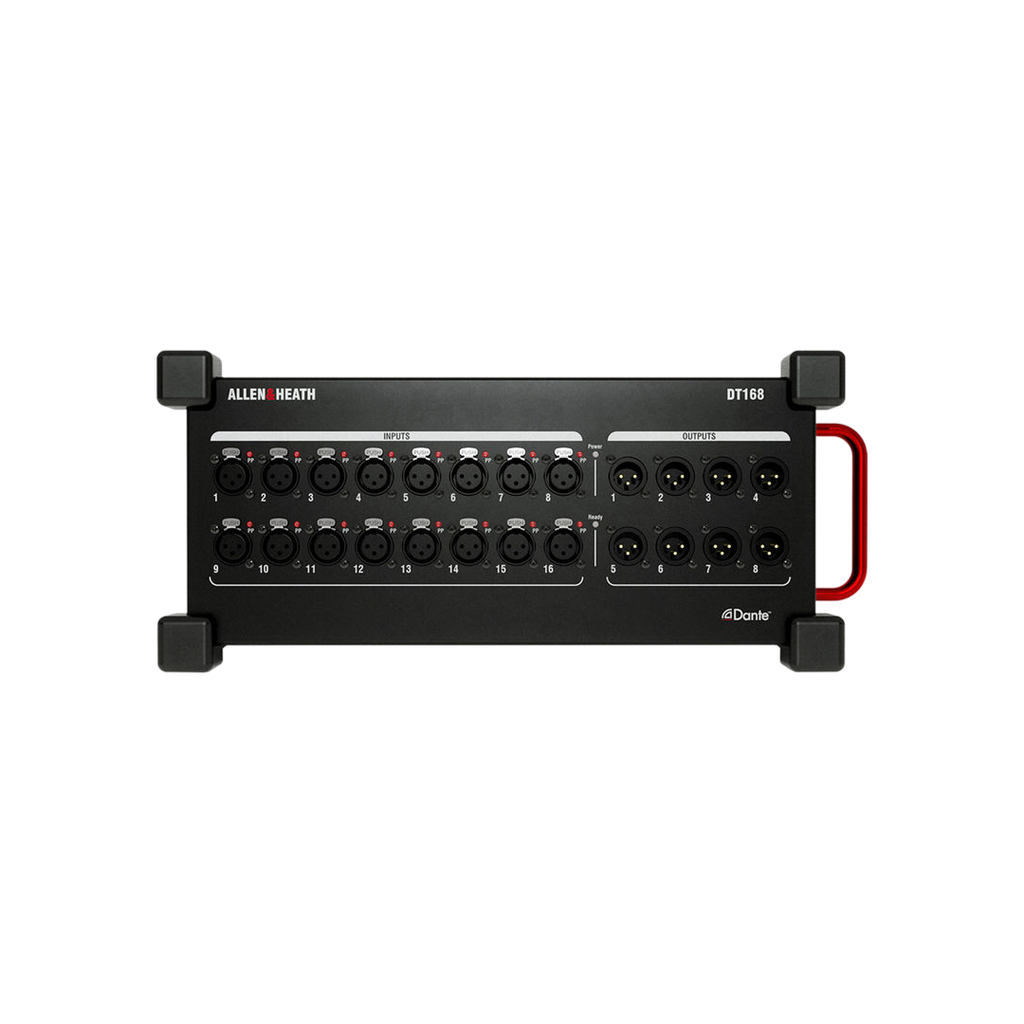

The Allen & Heath DT168 is a professional Dante-enabled stage box designed to expand the I/O capabilities of Allen & Heath digital mixing systems and provide flexible remote audio connectivity for live sound, installations, and touring applications. Featuring 16 remote-controlled microphone preamps and 8 balanced XLR line outputs, the DT168 delivers high-quality 96 kHz audio over a Dante network using secure EtherCON connections. With a rugged portable design, redundant network capability, and compatibility with dLive, Avantis, SQ, Qu Dante systems, and AHM processors, the DT168 provides a reliable solution for professional stage and distributed audio environments.

Key features

• Professional Dante-enabled 16-in / 8-out stage box
• 16 remote-controlled microphone/line preamps
• 8 balanced XLR line outputs with relay protection
• Dante audio networking with 48 kHz and 96 kHz operation

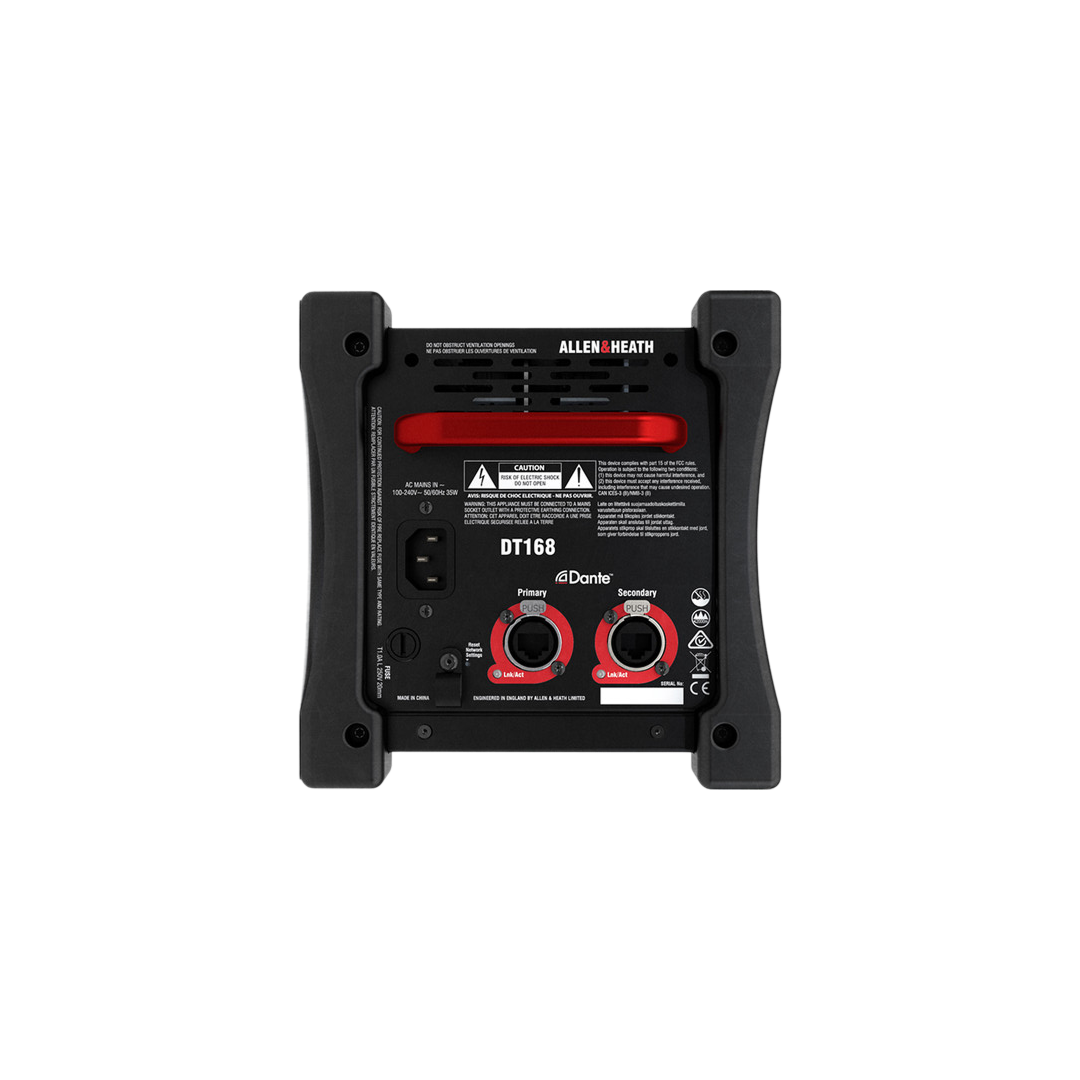

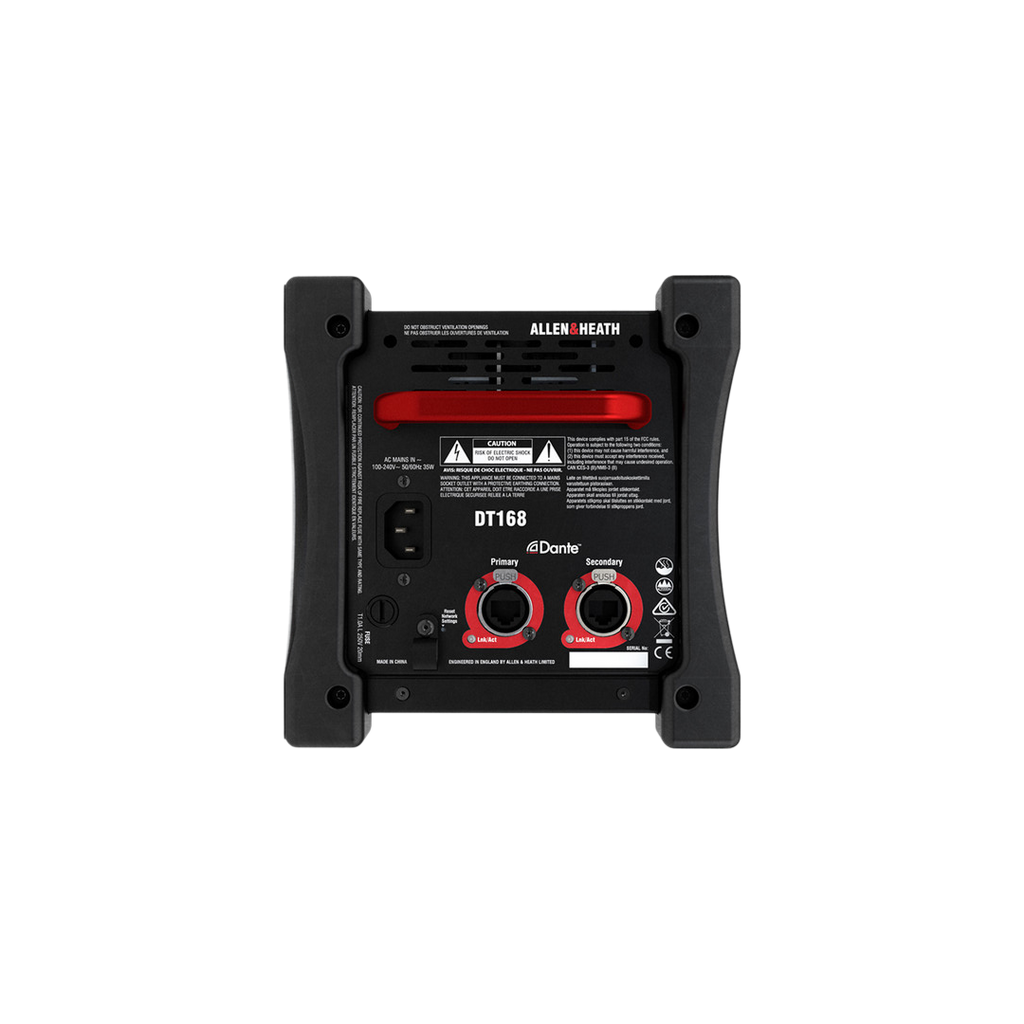

• Primary and Secondary Dante EtherCON ports
• Redundant or switched Dante network modes
• Remote control of gain, phantom power and pad settings
• +60 dB analogue gain range with 1 dB steps
• -20 dB pad for high-level line sources
• Compatible with Allen & Heath dLive, Avantis, SQ, Qu Dante and AHM systems

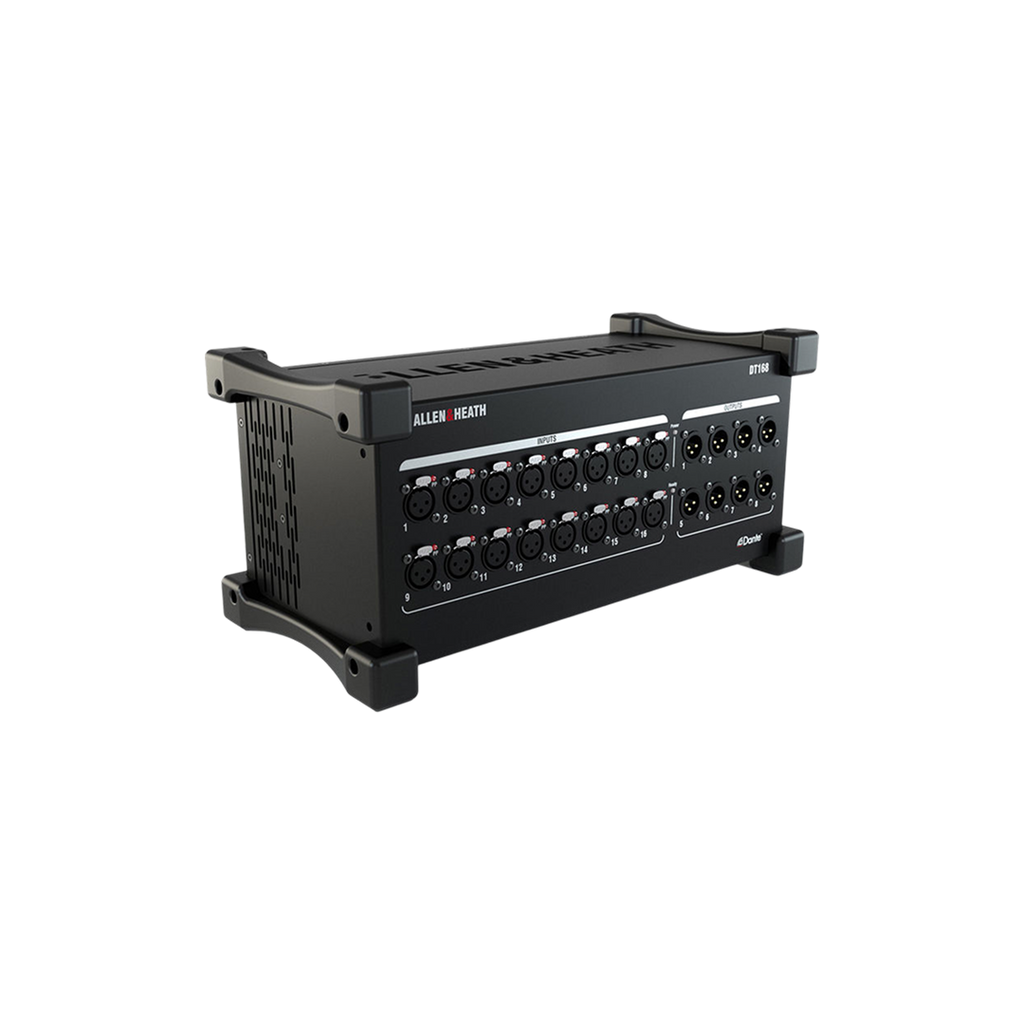

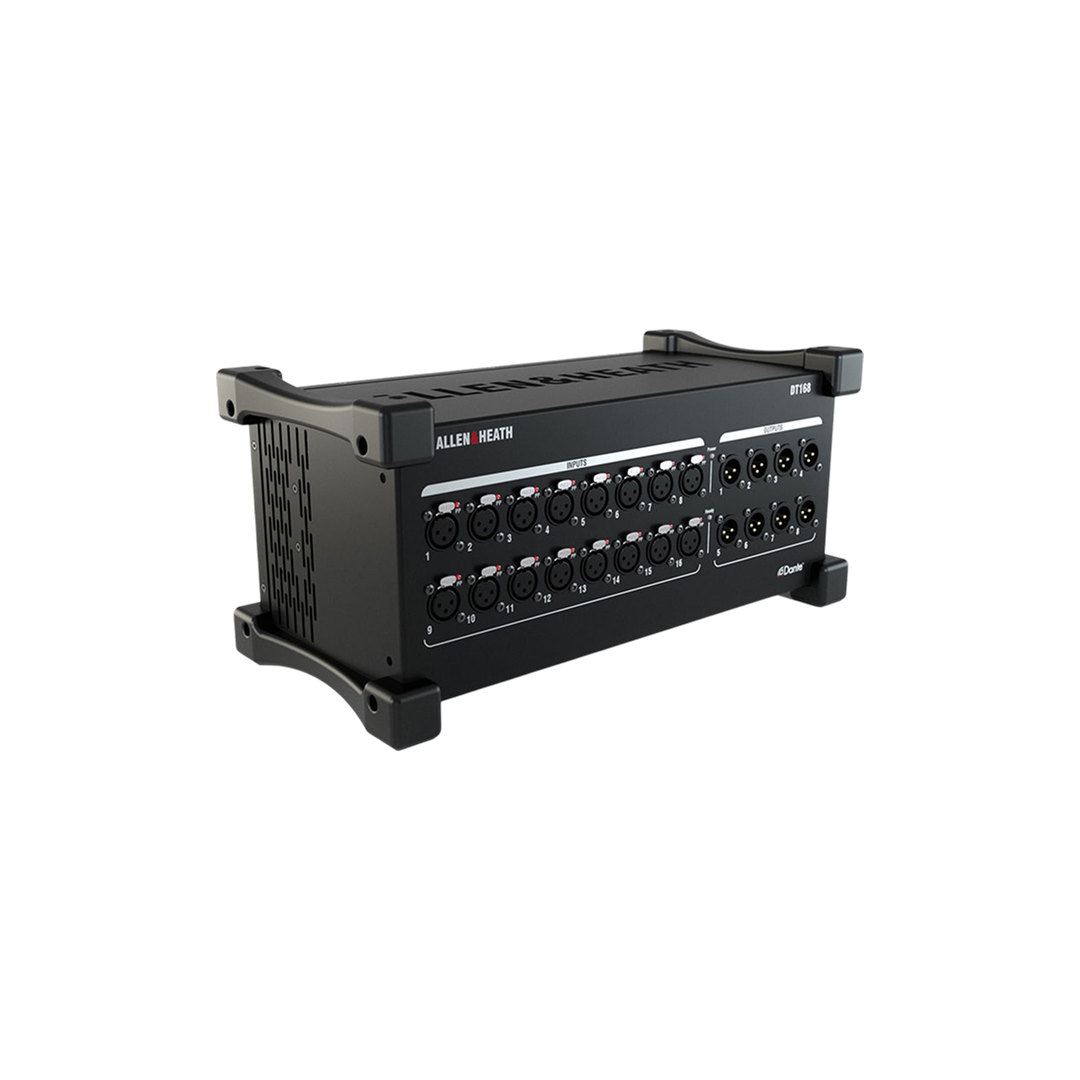

• Portable stage-ready design with rubber bumpers and carry handle
• Optional 19" rack mounting capability
• AES67 compatible and Dante Domain Manager ready

Overview

Included Content

• Allen & Heath DT168 Dante stage box
• IEC power cable
• User documentation

Creative Tools

• 16 high-quality microphone preamps allow stage inputs to be positioned exactly where they are needed while maintaining full remote control from compatible Allen & Heath systems.
• Dante networking allows audio, control data and system communication to travel through standard network infrastructure, simplifying complex installations.
• Remote gain, phantom power and pad control provide engineers with complete preamp management directly from the mixing console or DT Preamp Control software.
• Eight balanced XLR outputs provide flexible routing for stage monitors, amplifiers, powered speakers and other audio equipment.
• Primary and Secondary Dante ports support redundant network setups or flexible daisy-chain configurations.
• The rugged enclosure with rubber bumpers and carry handle makes the DT168 suitable for touring, rental, education and fixed installations.
• The optional rack mounting kit allows the unit to be installed into professional 19" systems when required.
• High-quality 96 kHz Dante operation provides detailed audio performance for demanding professional applications.

Ideal For

• Professional live sound systems
• Concerts and touring productions
• Theatres and performance venues
• Broadcast and AV installations
• Allen & Heath dLive, Avantis, SQ and Qu Dante users
• Rental companies and mobile production teams
• Large distributed audio networks using Dante infrastructure
