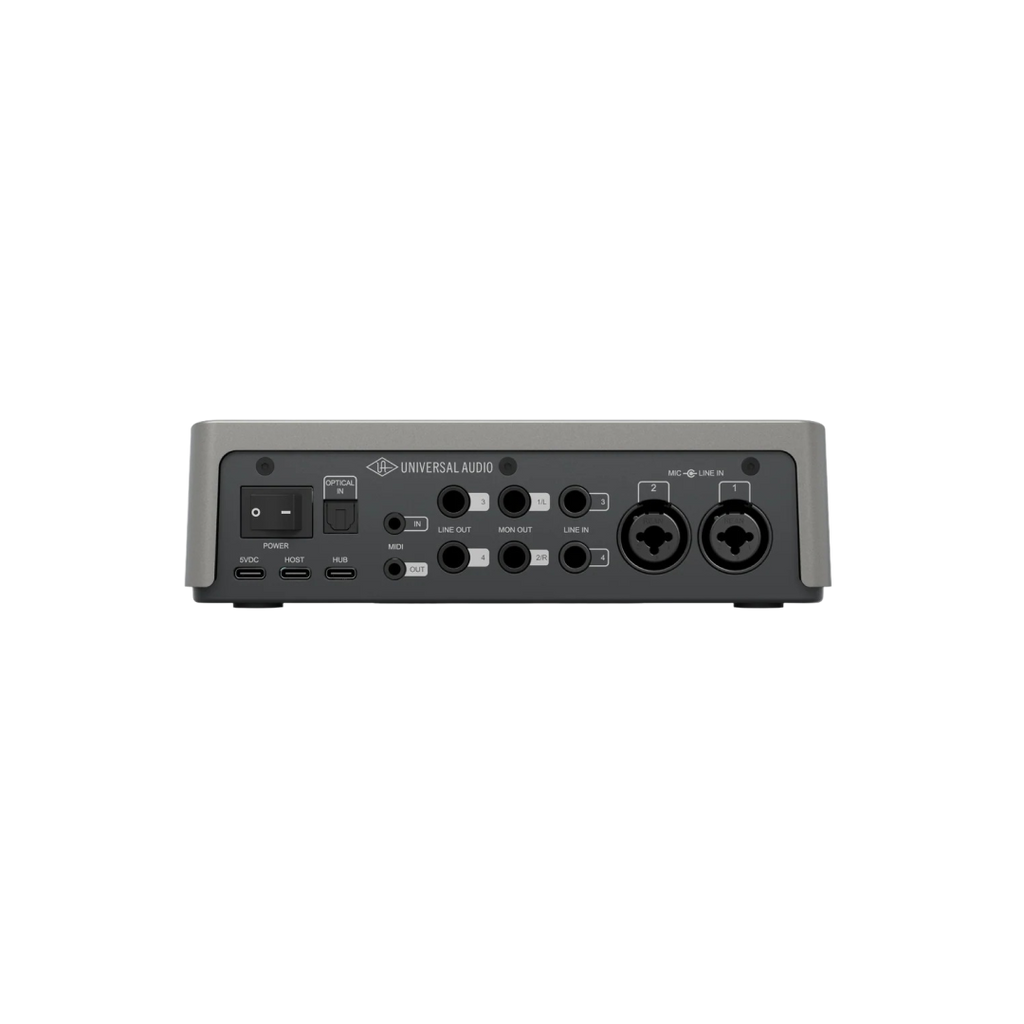

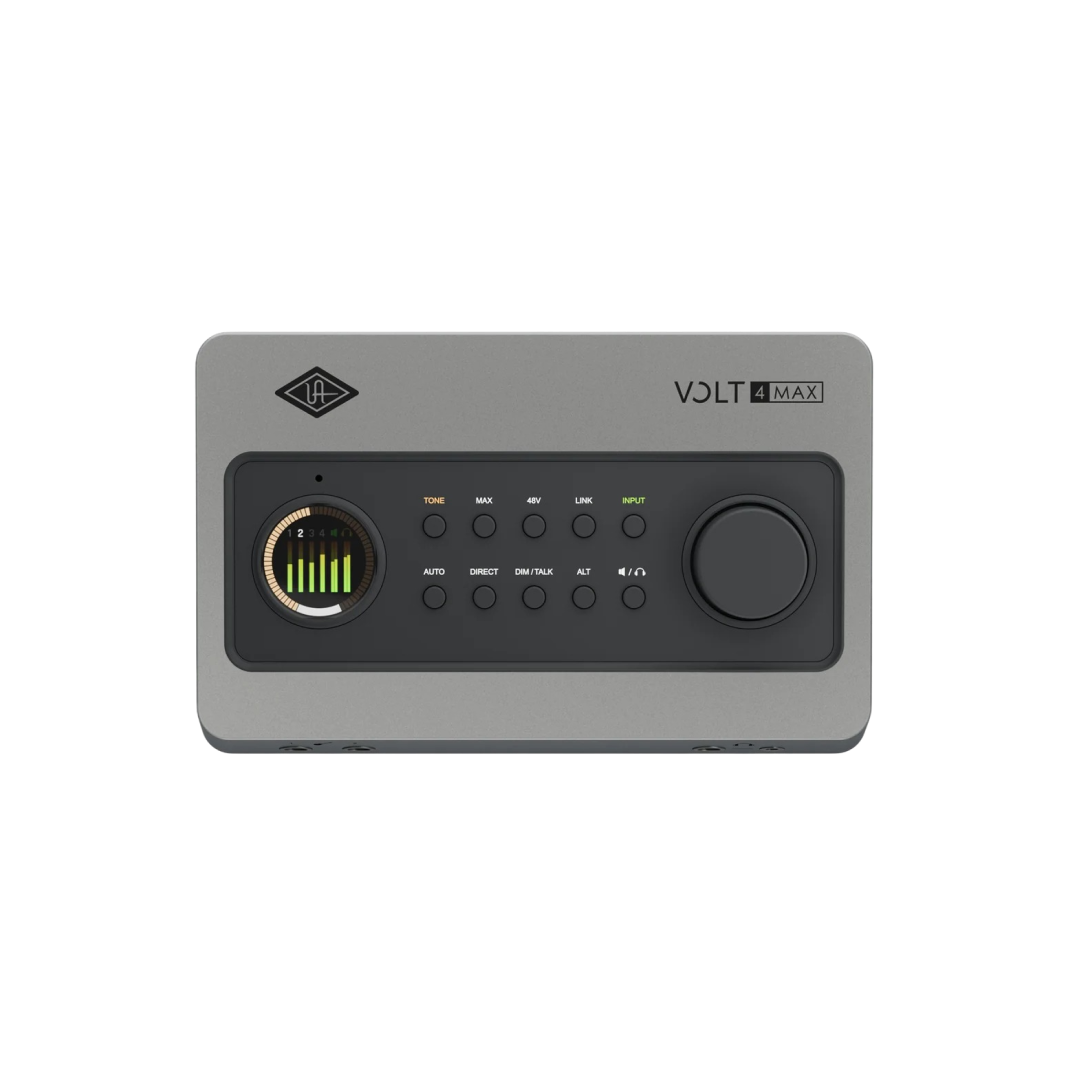

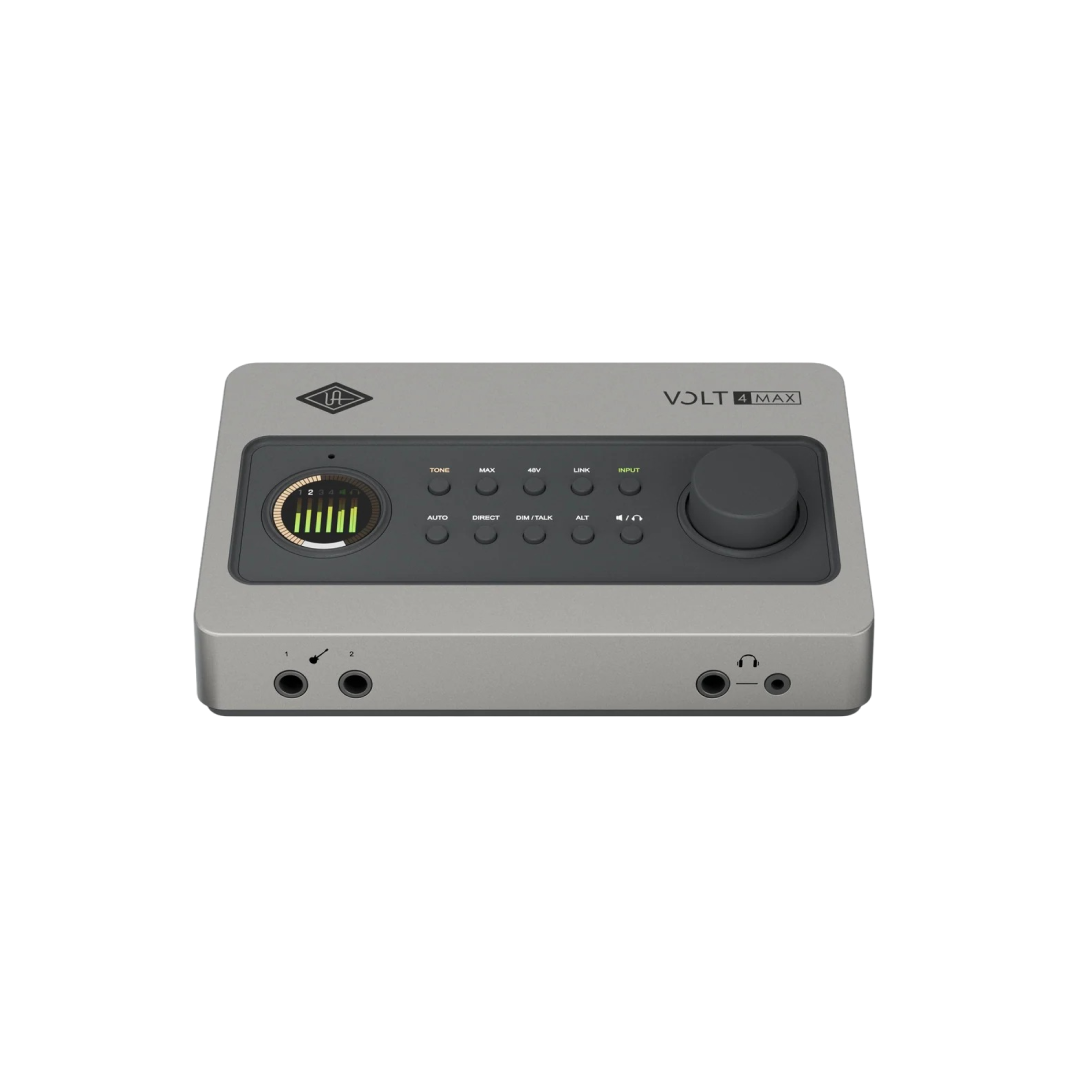

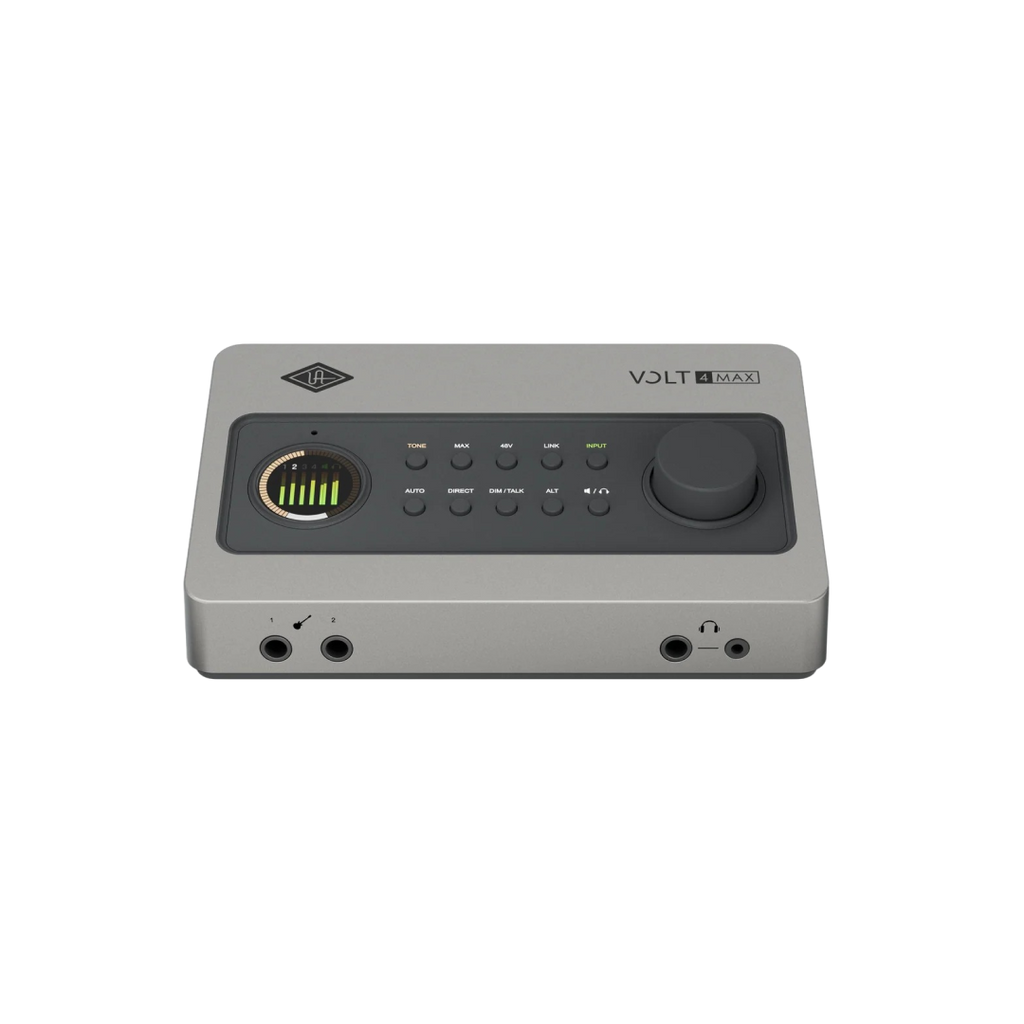

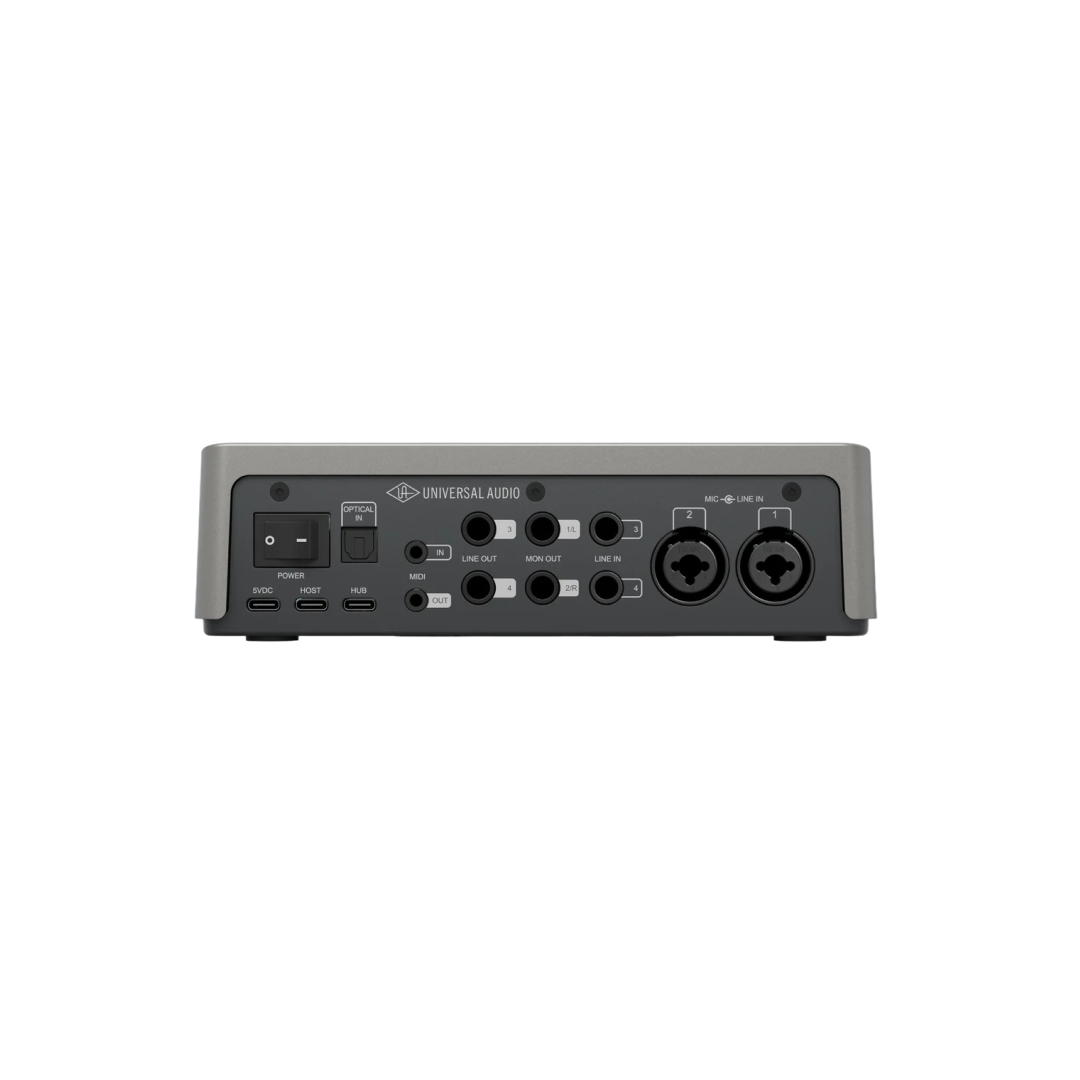

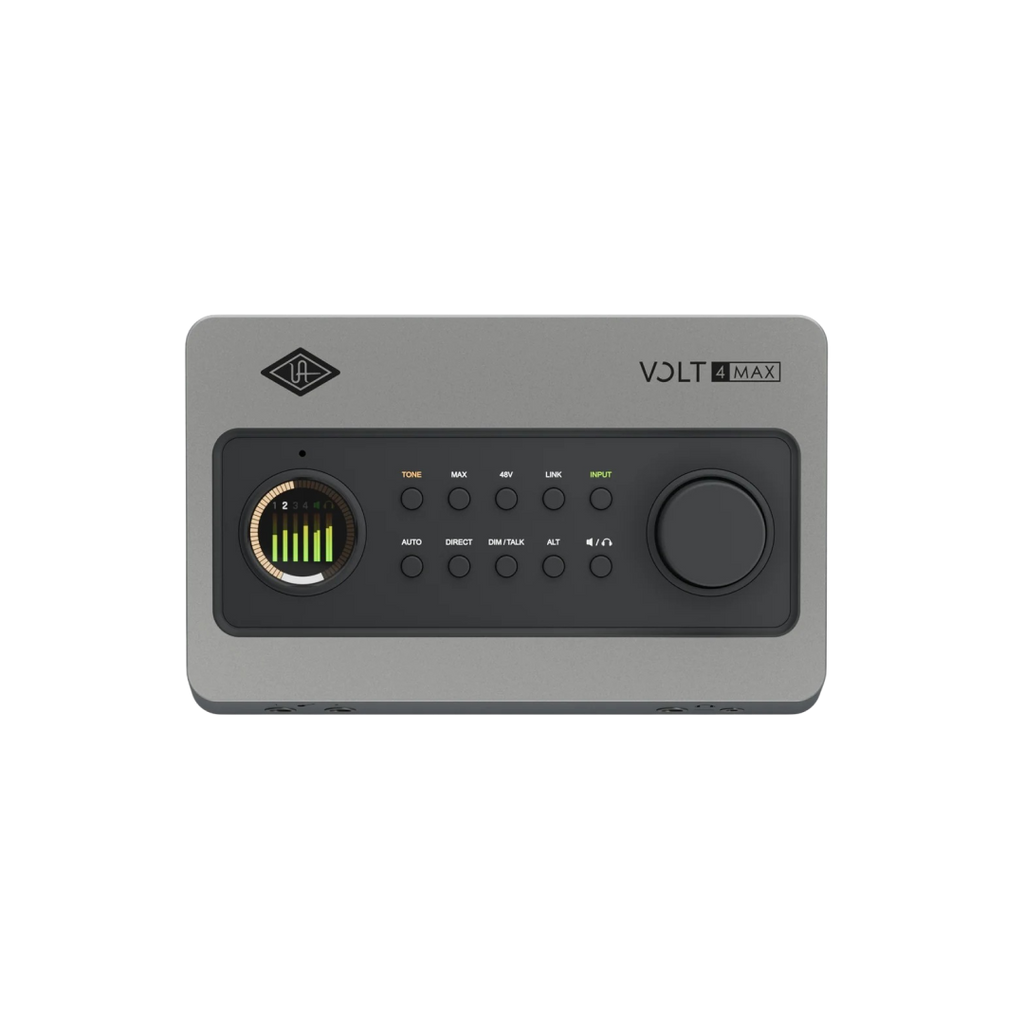

Universal Audio Volt 4 Max
€479,00
Skip to product information
Out of stock
Universal Audio Volt 4 Max
By Universal Audio
€479,00
Price excluding VAT: €395,87
Universal Audio Volt 4 Max is an expandable 12-in / 6-out USB-C audio interface and studio-monitoring controller designed for musicians, producers, electronic performers, podcasters and project studios. It combines 32-bit / 192 kHz conversion with two Tone Shaping preamps, six Max compressor presets, four analogue inputs, ADAT or SPDIF expansion and four balanced outputs. Main/Alt speaker switching, dual headphone connections, built-in talkback, Auto-Gain, Clip Protection and a full-colour Smart Display provide an integrated recording and control-room workflow.
Key features
- Expandable 12-in / 6-out USB-C audio interface
- Professional 32-bit / 192 kHz audio conversion
- Four analogue inputs
- Two XLR/TRS microphone and line inputs
- Two front-panel Hi-Z instrument inputs
- Two additional balanced line inputs
- Two digitally controlled Tone Shaping preamps
- 60 dB of available preamp gain
- Warmth, Focus and Shine preamp character modes
- Onboard Max real-time dynamics processing
- Six source-specific compressor presets
- Compression inspired by classic 1176, LA-2A and VCA designs
- More than 18 Tone Shaping and compression combinations
- Full-colour Smart Display with gain-reduction metering
- Auto-Gain for automatic recording-level setup
- Clip Protection guards against unexpected peaks
- Independently switchable +48 V phantom power per channel
- ADAT optical input for up to eight additional channels
- Optical SPDIF input mode
- Main and Alt studio-monitor switching
- Built-in talkback microphone
- Two headphone outputs with a shared cue mix
- MIDI input and output
- Integrated USB hub for compatible peripherals
- Built-in loopback for streaming and podcasting
- Integration with UAD Console and LUNA
- USB bus-powered operation supported
- Compatible with Mac, Windows, iPad and iPhone
Overview
| Product Type | Expandable USB-C Audio Interface and Monitor Controller |
| Maximum Simultaneous I/O | 12 Inputs / 6 Outputs |
| Maximum Audio Resolution | 32-Bit / 192 kHz |
| Supported Sample Rates | 44.1, 48, 88.2, 96, 176.4 and 192 kHz |
| Microphone/Line Inputs | 2 × XLR/TRS Combo Inputs |
| Instrument Inputs | 2 × 6.35 mm TS Hi-Z Inputs |
| Additional Line Inputs | 2 × Balanced 6.35 mm TRS Inputs |
| Total Analogue Inputs | 4 |
| Microphone Preamps | 2 × Digitally Controlled Tone Shaping Preamps |
| Available Gain | 60 dB per Preamp Channel |
| Preamp Character Modes | Warmth, Focus and Shine |
| Dynamics Processing | Max Processing with 6 Compressor Presets |
| Automatic Level Control | Auto-Gain and Clip Protection |
| Phantom Power | +48 V, Independently Switchable per Channel |
| Microphone Input Dynamic Range | 119 dB, A-Weighted |
| Instrument Input Dynamic Range | 116 dB, A-Weighted |
| Instrument Input Impedance | 1 MΩ |
| Optical Input | ADAT or SPDIF |
| ADAT Input Channels | 8 at 44.1/48 kHz, 4 at 88.2/96 kHz, 2 at 176.4/192 kHz |
| SPDIF Input Channels | 2 at All Supported Sample Rates |
| Main Monitor Outputs | 2 × Balanced 6.35 mm TRS |
| Alt Monitor Outputs | 2 × Balanced 6.35 mm TRS |
| Speaker Switching | Main / Alt |
| Monitor and Line Output Dynamic Range | 126 dB, A-Weighted |
| Maximum Line Output Level | +20.2 dBu |
| Headphone Outputs | 1 × 6.35 mm TRS and 1 × 3.5 mm TRS |
| Headphone Cue Mixes | 1 Shared Stereo Cue Mix |
| Maximum Headphone Power | 45 mW per Channel into 32 Ohms |
| Talkback | Integrated Microphone |
| MIDI | 3.5 mm TRS Type A MIDI In and MIDI Out |
| USB Hub | 1 × USB-C, 5 V DC / 0.5 A Maximum |
| Loopback | Integrated |
| Display | Full-Colour Smart Display with Gain-Reduction Metering |
| Control Software | UAD Console |
| Computer Connection | USB 2.0 via USB-C |
| External Power Input | USB-C, 5 V DC / 1.5 A Minimum |
| Compatibility | Windows, macOS, iPadOS and iOS |
| Power | USB Bus Power or External USB Power |
| Power Switch | Rear Panel |
| Power Consumption | 5.5 W Typical, 7.1 W Maximum |
Included Content
- Universal Audio Volt 4 Max
- USB connection cable
- 5 V / 3 A external USB power supply
- LUNA Digital Audio Workstation
- UAD Volt Studio Bundle
- Additional software and educational content from Universal Audio partners
Included Software
- LUNA Free
- Topline Vocal Tune
- UA 610 Tube Preamp & EQ Collection
- Century Tube Channel Strip
- Teletronix LA-2A Tube Compressor
- UA 1176 Classic FET Compressor
- Pure Plate Reverb
- Galaxy Tape Echo
- Oxide Tape Recorder
- Vibe Analog Machines and Vibe Analog Machines Essentials
- PolyMAX Synth
- Anthem Analog Synth
- UAD Lion ’68 Super Lead Amp
- UAD Showtime ’64 Tube Amp
- Melodyne Essential by Celemony
- Ampeg SVT-VR Classic Bass Bundle by Plugin Alliance
- Virtual Drummer DEEP and Virtual Bassist DANDY by UJAM
- Splice INSTRUMENT
- Prisma – Producer Lab by UVI
- Three-month FL Studio Producer Edition access
- Exclusive Puremix educational content
Creative Tools
- Record two microphones together with two additional line-level sources, allowing vocals, instruments, synthesizers and drum machines to be captured simultaneously.
- Combine Warmth, Focus or Shine preamp character with one of six Max compressor presets to create more than 18 recording tones directly at the input.
- Use Max Processing to control dynamics and add FET, optical or VCA-inspired compression while recording vocals, acoustic instruments, guitars and basses.
- Use Auto-Gain to establish recording levels automatically, then enable Clip Protection to guard against unexpected signal peaks.
- View input levels, operating settings and compressor gain reduction through the full-colour Smart Display.
- Expand the interface through ADAT to add up to eight digital input channels for recording drums, ensembles and small bands.
- Switch the optical input to SPDIF mode for compatible digital instruments, preamps, media players and converters.
- Connect two pairs of studio monitors and switch between the Main and Alt outputs to check how a mix translates across different speaker systems.
- Connect two pairs of headphones for collaborative sessions, with both listeners receiving the same cue mix.
- Communicate with performers through the built-in talkback microphone without entering the recording space.
- Connect external processors through outputs 3–4 and return the processed signal through the additional line inputs.
- Connect MIDI keyboards, synthesizers, drum machines and controllers through the TRS MIDI input and output.
- Connect and power a compatible USB MIDI controller through the integrated USB-C hub.
- Blend live inputs with computer audio through loopback for podcasts, livestreams, gameplay and remote interviews.
- Create low-latency cue mixes and recall interface settings through UAD Console and integrated LUNA sessions.
- Use the included external power supply when running connected peripherals or mobile systems that cannot provide sufficient USB bus power.
Ideal For
- Home and project studios
- Music producers
- Vocalists and singer-songwriters
- Guitarists and bassists
- Electronic musicians
- Synthesizer and drum-machine setups
- Recording with onboard compression
- Multichannel ADAT expansion
- Studios using two sets of monitors
- Collaborative recording with dual headphones and talkback
- Hardware effects and outboard processing
- Podcasters, livestreamers and content creators
- Users seeking an integrated audio interface and monitor-control system
